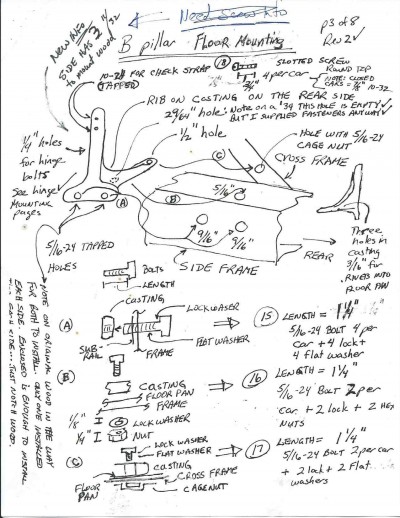

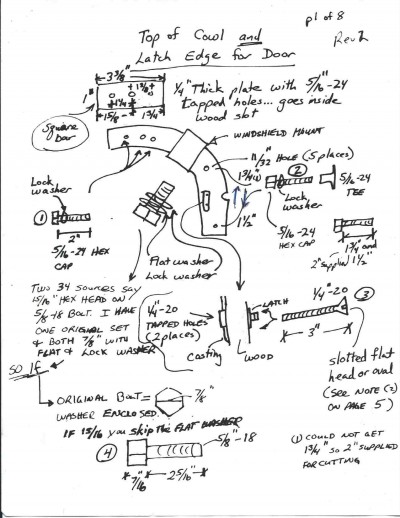

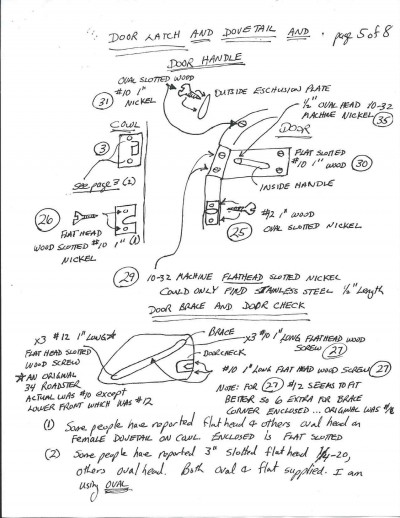

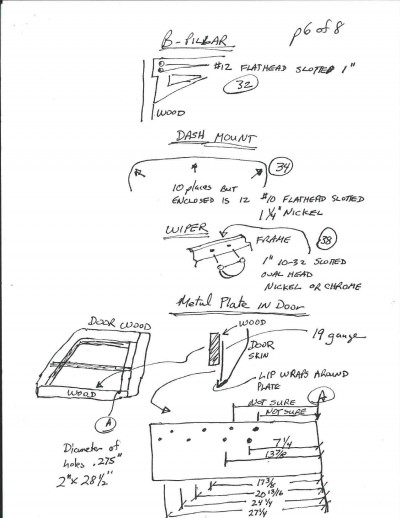

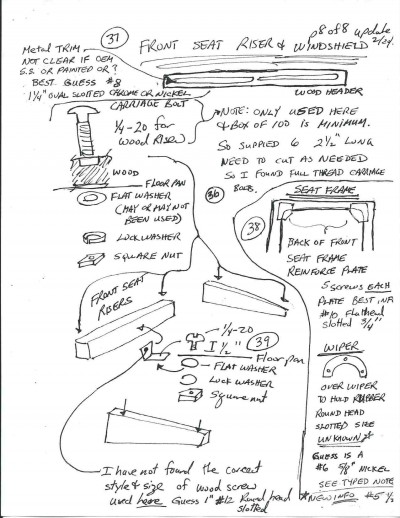

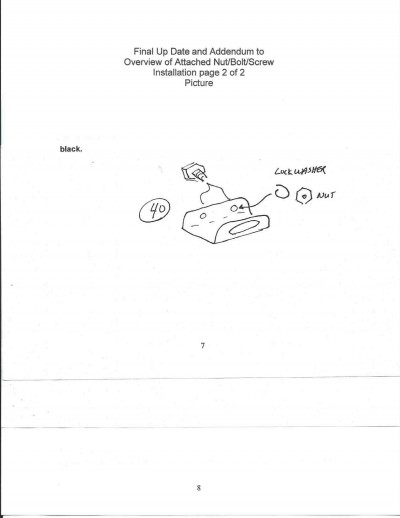

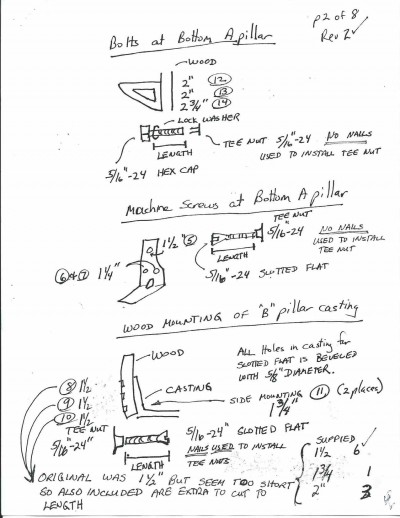

Ed Solari of FordBarn has hand drawn a bunch of various 1934 Ford Roadster details, along with an overview pdf (attached below). He has given me permission to publish his sketches to my website for the benefit of others who may be restoring a 1934 Roadster.
If anyone has additional details that may be of interest to others, please send me an email and I’d be happy to add them.
